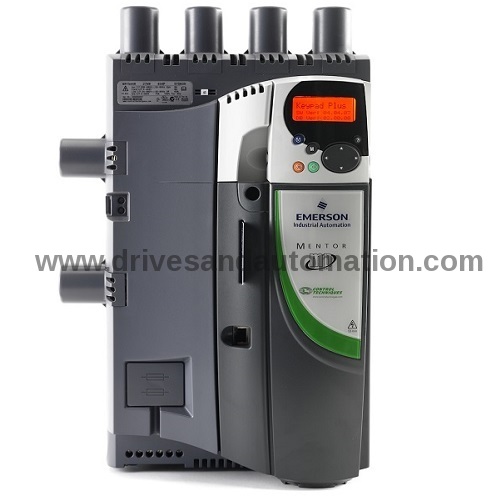

NIDEC / CONTROL TECHNIQUES MENTOR MP75A4R – 27kW 4 QUADRANT 75Amp INDUSTRIAL DC DRIVE

Original price was: £4,176.00.Current price is: £3,132.00.

Commissioning service available on this Mentor MP75A4R DC Drive

The Mentor MP75A4R is a part of Control Techniques’ 5th generation DC drive series and integrates the control platform from the world’s leading intelligent AC drive, Unidrive SP. This makes Mentor MP the most advanced DC drive available, giving optimum performance and flexible system interfacing capability.

Available on back-order

Description

MP75A4R Overview

Item# MP75A4R

Manufacturer: Control Techniques

Type: DC Drives, MENTOR MP Series

Mentor MP75A4R DC Drive, 240/480VAC Input 75 Amps Output, Regenerative Drive

MP75A4R – Mentor MP is Control Techniques’ 5th generation DC drive and integrates the control platform from the world’s leading intelligent AC drive, Unidrive SP. This makes Mentor MP the most advanced DC drive available, giving optimum performance and flexible system interfacing capability.

Note: – Mentor MP has been engineered as an easy replacement for Mentor II. With the same footprint it is so easy to migrate to the new Mentor MP platform!

Greater motor field control

  • Built in field controller as standard
  • Gives excellent field control for the majority of DC motors
  • Reduces the need for external components

Enhanced field control with FXMP25 (Optional Extra)

  • The FXMP25 may be controlled digitally by using a standard RJ45 connection, allowing set-up by standard drive parameters
  • The FXMP25 can also function in standalone mode using its integrated keypad and display

Enhanced system design

  • The heatsink cooling fans are intelligently controlled and only run when required, thus increasing reliability and reducing maintenance
  • Eighteen different option modules allow customisation of the drive, including fieldbus, Ethernet, I/O, extra feedback devices and motion controllers
  • The drive system designer is able to embed automation and motion control within the drive, eliminating communications delays that reduce performance

Fast set-up, configuration and monitoring

  • Quick and easy to set-up
  • Can be configured using optional removable keypads
  • Advanced autotune features help you get the best performance from your machine
  • PC software and Smartcard tools for rapid commissioning
  • Intelligent networked system with CTNet
  • Program inbuilt controller with SyPTLite
  • Develop tailored solutions for applications modules with SyPTPro
  • Option modules for all common Industrial Ethernet, fieldbus networks

Retro-fit projects

  • Easy integration with your existing motor, power supply, application equipment and communication networks has been ensured from the design stage
  • Mentor MP brings performance and possibilities to your application with minimum migration costs

Ease of migration

  • Mentor MP has been designed so existing Mentor II customers can easily migrate to the new platform
  • All power terminal locations and mounting points have been retained
  • Mentor MP has a much smaller frame size than the 900 A Mentor II with paralleling options to offer high power density
  • CT Soft has a built in migration wizard to assist with the transfer of drive parameters and programs
  • Smaller cable requirements make connections within the cubical easier. Construction of a custom-made bus-bar is not required

Motor Field Control

  • Built in field controller as standard in every Mentor MP
    • Gives excellent field control for the majority of DC motors
    • Reduces the need for external components

An external motor field controller is recommended when:

  • The required field current is greater than that offered by the standard drive, up to 25 A. For example, older motors with low field voltages
  • The field is required to be forced down more quickly than is possible with a standard half controlled field bridge
  • Applications can be implemented with simple field current reversal, without armature reversal, if machine dynamics can still be met
Need help installing your Mentor MP75A4R ? Take advantage of a commissioning package.
Drives and Automation are an authorised distributor for Control Techniques/Nidec Products. Not only can we sell you the Drive you require, we can also service and repair it if required.

Commissioning Service available

Drives and Automation offer a commissioning service for most UK locations on this item.  Call us today to Enquire about one of our experienced engineers commissioning this drive and reducing your downtime.

Drive commissioning by DnA

Technical Information

 Input Voltage  415v  Width  293mm  Digital Inputs  6
 Input Phases  3  Height  444mm  Digital Outputs  3
 Power kW  27  Depth  222mm  Analogue I/Ps  3
 Armature Current  75 Amps  Weight  10kg  Analogue O/Ps  2
 Armature Voltage  1.35 x Input  Quadrants  4  Aux Voltage  208 to 480V
 Field Voltage  0.9 x Input  Frame Size  1A  Control Voltage  N/A
 Encl Rating  IP20  Input Freq  45-65Hz  Approvals  UL, cUL, CE
Duty  Normal Max Temp  40degC  Model  MP75A4R
