TEC IE3 55KW 400V 6 POLE CAST IRON AC MOTOR
£2,117.05 Plus VAT & Shipping
Type: AC Motor
Mounting: B3 (other mounting options available, see selection list).
Frequency: 50 -60hz
Construction: Cast Iron
Frame Size: 280
Phase: 3 Phase
Insulation Class: F
IP55 as standard, a totally enclosed motor, fan cooled, protected against penetration from dust and water ingress coming from any direction. IC 411 cooling & PTC thermistors.
This lightweight yet rugged ECOL 55 kW “TC” motor is the latest in high efficiency cast iron design from the factory. These motors are suitable for many applications including pumps, fans, compressors, mining, agricultural, maritime, hydraulic and many more.
|Power||55 kW||Type||3 phase Cast iron IE3||Poles||6|
|Rotation Speed||980 | 1176||Frame Size||280||Model||T3C 280M1-6|
|Frame Construction||Cast Iron||Rated Current||99.25 | 57.3||Net Weight||624.3 kg|
|Input Voltage||400 | 690||Duty||S1||Protection||IP55|

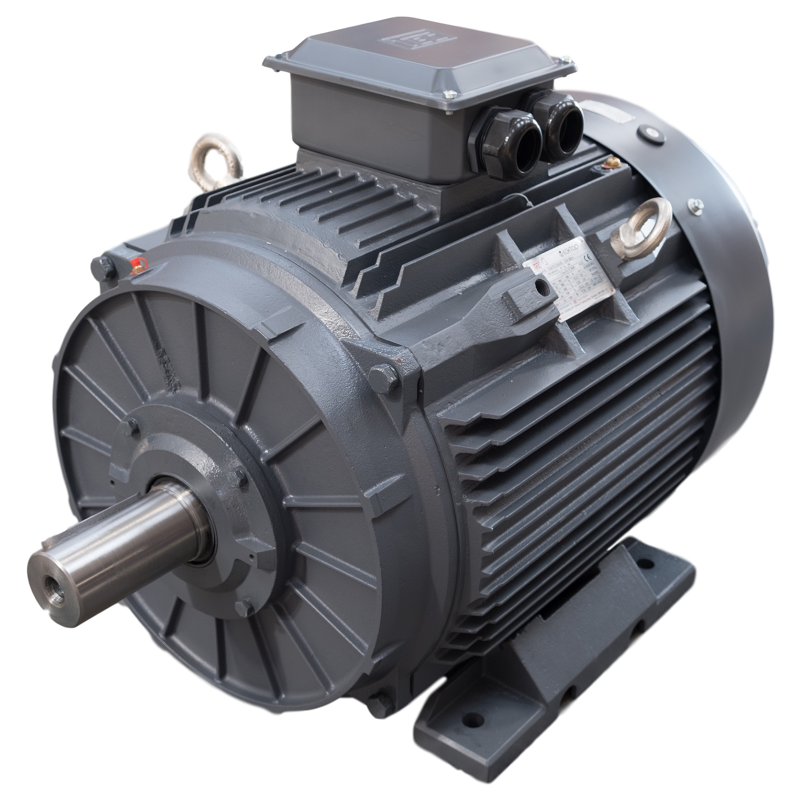

|B3 Foot Mount|

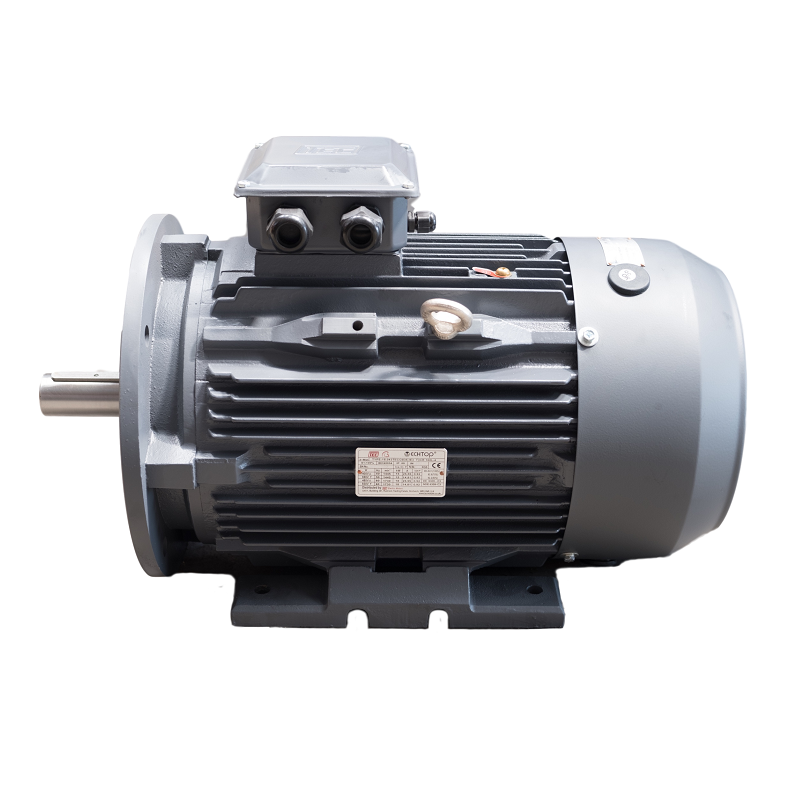

|B35 Foot and Flange mount|

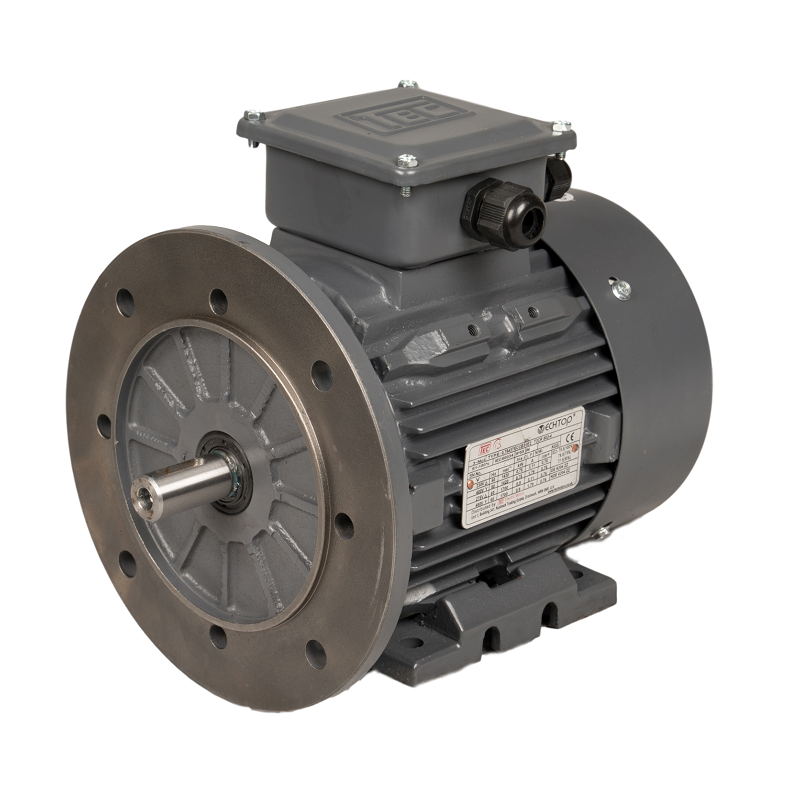

|B5 Flange mount|
B3, B35, B5
