TEC IE3 11KW 400V 4 POLE CAST IRON AC MOTOR

£445.86 Plus VAT and shipping

Type: AC Motor
Manufacturer: TEC
Output: 11kW
Mounting: B3 (other mounting options available, see selection list).
Frequency: 50 -60hz
Construction: Cast Iron
Frame Size: 160
Phase: 3 Phase
Insulation Class: F
Efficiency: IE3

Select your Mounting Option:

Image may be representative.

Description

A TEC 11kw, 4 pole, cast iron AC motor, IP55 with multimount frame offering a wide variety of mounting options, PTC thermistors fitted as standard.
TEC IE3 High Efficiency 11kW 3 phase 4 Pole AC Induction Motor, with a choice of mounts, for use with a 400V 3 phase supply. Inverter Rated for use with either a Variable Frequency Inverter Drive (VFD) or with a fixed frequency mains supply at 50Hz. IP55, IE3 Efficiency with PTC thermistors fitted. Cast Iron multi mount construction in IEC frame

IP55 as standard, a totally enclosed motor, fan cooled, protected against penetration from dust and water ingress coming from any direction. IC 411 cooling & PTC thermistors.

This lightweight yet rugged ECOL 11kW “TC” motor is the latest in high efficiency cast iron design from the factory. These motors are suitable for many applications including pumps, fans, compressors, mining, agricultural, maritime, hydraulic and many more.

  Power   11 kW   Type   3 phase Cast iron IE3   Poles   4
  Rotation Speed   1450 | 1740   Frame Size   160   Model   T3C 160M-4
  Frame Construction   Cast Iron   Rated Current   20.68 | 11.94   Net Weight   127 kg
  Input Voltage  400 | 690   Duty   S1   Protection   IP55

Datasheets

  B3 mount   11.043teccb3-ie3
  B5 mount   11.043teccb5-ie3
  B35 mount   11.043teccb35-ie3

Drawings

  B3 mount   tc160b3
  B5 mount   tc160b5
  B35 mount   tc160b35

Mounting options

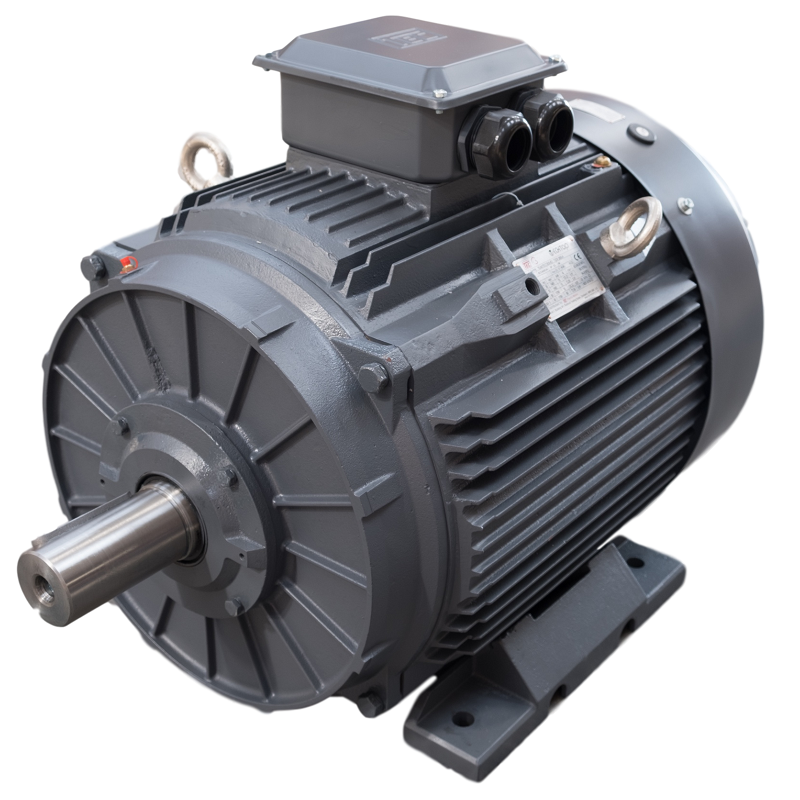

B3 Foot Mount   B3 Foot Mount

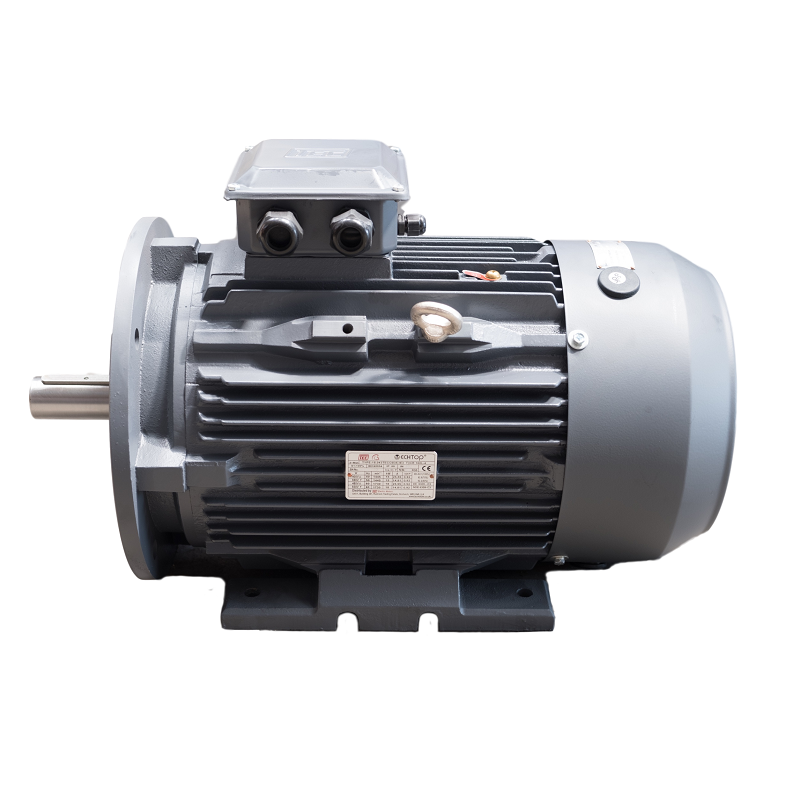

B35 Foot and Flange Mount   B35 Foot and Flange mount

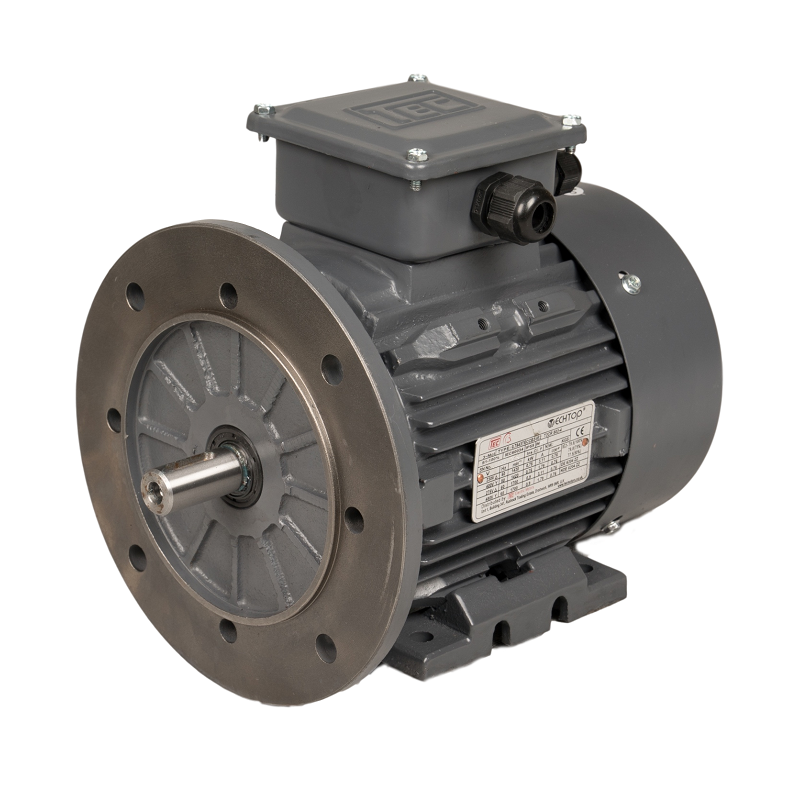

B5 Flange Mount   B5 Flange mount
