Sicme Motori RA Series Industrial DC Motor Frame Size 200
Typical specification is 400V 93.0kW @ 1517 RPM, other winding options available in table below. Please select which winding you require on the winding option dropdown when ordering your motor.
| 400V | ||||||||
| Winding | RPM | P [kW] | V | I [A] | T [Nm] | η [%] | R arm (Ohm) | L arm (mH) |
| 200 NS L | 1758 | 105 | 400 | 292 | 570 | 88.96% | 0.0897 | 1.2 |
| 200 NS M | 1610 | 93.0 | 400 | 262 | 552 | 88.29% | 0.1084 | 2.35 |
| 200 KS L | 1635 | 104 | 400 | 292 | 607 | 88.55% | 0.0981 | 0.77 |
| 200 KS M | 1517 | 93.0 | 400 | 262 | 585 | 88.00% | 0.1159 | 1.02 |
| 200 NM G | 1689 | 130 | 400 | 360 | 735 | 89.66% | 0.0677 | 1.50 |
| 200 NM L | 1379 | 104 | 400 | 292 | 720 | 88.01% | 0.1038 | 2.50 |
| 200 KM F | 1848 | 146 | 400 | 405 | 754 | 89.66% | 0.0578 | 0.48 |
| 200 KM G | 1566 | 129 | 400 | 360 | 787 | 88.74% | 0.0771 | 0.75 |
| 200 KM L | 1283 | 103 | 400 | 292 | 767 | 87.62% | 0.1123 | 0.97 |
| 200 NL E | 1701 | 162 | 400 | 444 | 910 | 90.08% | 0.0503 | 1.28 |
| 200 NL F | 1553 | 146 | 400 | 405 | 898 | 89.35% | 0.0618 | 1.41 |
| 200 NL G | 1315 | 129 | 400 | 360 | 937 | 88.46% | 0.0797 | 1.90 |
| 200 KL D | 1747 | 178 | 400 | 491 | 973 | 90.20% | 0.0451 | 0.41 |
| 200 KL E | 1578 | 160 | 400 | 444 | 968 | 89.48% | 0.0565 | 0.56 |
| 200 KL F | 1440 | 145 | 400 | 405 | 962 | 88.95% | 0.0673 | 0.61 |
| 200 NX C | 1860 | 195 | 400 | 535 | 1001 | 90.37% | 0.0398 | 1.08 |
| 200 NX D | 1654 | 179 | 400 | 491 | 1034 | 90.03% | 0.0463 | 1.34 |
| 200 NX E | 1504 | 161 | 400 | 444 | 1022 | 89.56% | 0.0547 | 1.41 |
| 200 NX F | 1373 | 146 | 400 | 405 | 1016 | 88.74% | 0.0673 | 1.58 |
| 200 KX C | 1748 | 194 | 400 | 535 | 1060 | 90.11% | 0.0416 | 0.43 |
| 200 KX D | 1546 | 178 | 400 | 491 | 1100 | 89.82% | 0.0488 | 0.46 |
| 200 KX E | 1395 | 159 | 400 | 444 | 1088 | 89.02% | 0.0613 | 0.63 |
| 200 NY C | 1666 | 195 | 400 | 535 | 1118 | 89.98% | 0.0431 | 1.19 |
| 200 NY D | 1481 | 178 | 400 | 491 | 1148 | 89.59% | 0.0501 | 1.45 |
| 200 NY E | 1346 | 160 | 400 | 444 | 1135 | 89.09% | 0.0592 | 1.55 |
| 200 KY B | 1699 | 213 | 400 | 585 | 1197 | 90.16% | 0.0377 | 0.35 |
| 200 KY C | 1555 | 192 | 400 | 535 | 1179 | 89.06% | 0.0496 | 0.47 |
| 200 KY D | 1384 | 177 | 400 | 491 | 1221 | 89.32% | 0.0526 | 0.51 |
Many other kWs, frames and speeds available, see our Sicme RA Series DC Motor selection help for more detail, please contact us if you have a requirement that is not listed.
Sicme RA Series Industrial DC Motors can be used in industries and applications such as:
Cable transport
Machine tools
Sheet metal working machines
Plastic extruders
Blow moulding machines
Presses
Amusement rides
Woven wire manufacturing machines
Thread/cable manufacturing machines
Converting
Steel/copper cable working machines
Board working machines
All Sicme RA Series Industrial DC Motors are suitable for either clockwise or counter-clockwise rotation without adjustment (as the brushes are radial), and they are generally tuned in the Test Room for this operating condition. In special cases, when the direction of rotation is defined, upon request, Test Room tuning can be carried out for one direction only.
IEC 60034-1 Standards
Fully laminated frame
Insulation class F
2 pole
Standard (non compensated winding).
Balancing A degree (ISO2373) with half key
Monolitic brush
Constant pressure brush-holders
Terminal box on top
Vacuum Pressure Impregnation
Standard arrangement uses ball bearings on both DE and NDE, grease lubricated for “life”, totally shielded on both sides (2Z type).

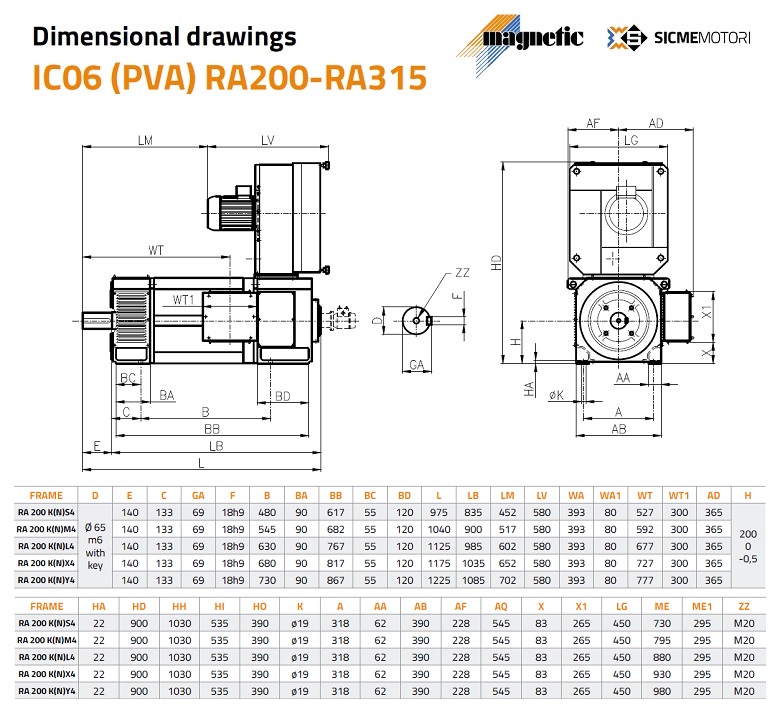

The standard mounting solution is IM 1001 mounting form (B3 according to UNEL 05513). Most of the forms of construction and mounting are available. For other forms of construction, please ask our sales. A second shaft end is also available on request.
It is assumed that the environment is:
dry, i.e. with relative humidity of the air below 75%. However, an excessively dry atmosphere (below 20% relative humidity) can cause commutating difficulty (excessive brush wear).
clean, i.e. without appreciable quantities of dust and dirt in general, suspended in the air.
free of chemical agents, i.e. without concentrations of gas or vapours that could chemically harm the copper, iron, aluminium,paints and insulation.
Sicme RA Series Industrial DC Motors can also be installed in difficult environments (damp, dusty, chemically harmful, etc.) but in this case the degree of protection, method of cooling and possibly the choice of materials must be agreed upon prior to ordering.
All Sicme RA Series Industrial DC Motors motors may be installed in environments with temperature down to –15°C and stored in environments with temperature down to –30°C.
