TEC IE3 132KW 400V 4 POLE CAST IRON AC MOTOR

£6,081.21 Plus VAT and shipping

Type: AC Motor
Manufacturer: TEC
Output: 132kW
Mounting: B3 (other mounting options available, see selection list).
Frequency: 50 -60hz
Construction: Cast Iron
Frame Size: 315
Phase: 3 Phase
Insulation Class: F
Efficiency: IE3

Select your Mounting Option:

Description

A TEC 132kw, 4 pole, cast iron AC motor, IP55 with multimount frame offering a wide variety of mounting options, PTC thermistors fitted as standard.
TEC IE3 High Efficiency 132kW 3 phase 4 Pole AC Induction Motor, with a choice of mounts, for use with a 400V 3 phase supply. Inverter Rated for use with either a Variable Frequency Inverter Drive (VFD) or with a fixed frequency mains supply at 50Hz. IP55, IE3 Efficiency with PTC thermistors fitted. Cast Iron multi mount construction in IEC frame

IP55 as standard, a totally enclosed motor, fan cooled, protected against penetration from dust and water ingress coming from any direction. IC 411 cooling & PTC thermistors.

This lightweight yet rugged ECOL 132 kW "TC" motor is the latest in high efficiency cast iron design from the factory. These motors are suitable for many applications including pumps, fans, compressors, mining, agricultural, maritime, hydraulic and many more.

  Power   132 kW   Type   3 phase Cast iron IE3   Poles   4
  Rotation Speed   1480 | 1776   Frame Size   315   Model   T3C 315M-4
  Frame Construction   Cast Iron   Rated Current   189.12 | 109.19   Net Weight   1155 kg
  Input Voltage  400 | 690   Duty   S1   Protection   IP55

Datasheets

  B3 mount   132.043teccb3-ie3
  B35 mount   132.043teccb35-ie3

Drawings

  B3 mount   tc315ml4b3
  B35 mount   tc315ml4b35

Mounting options

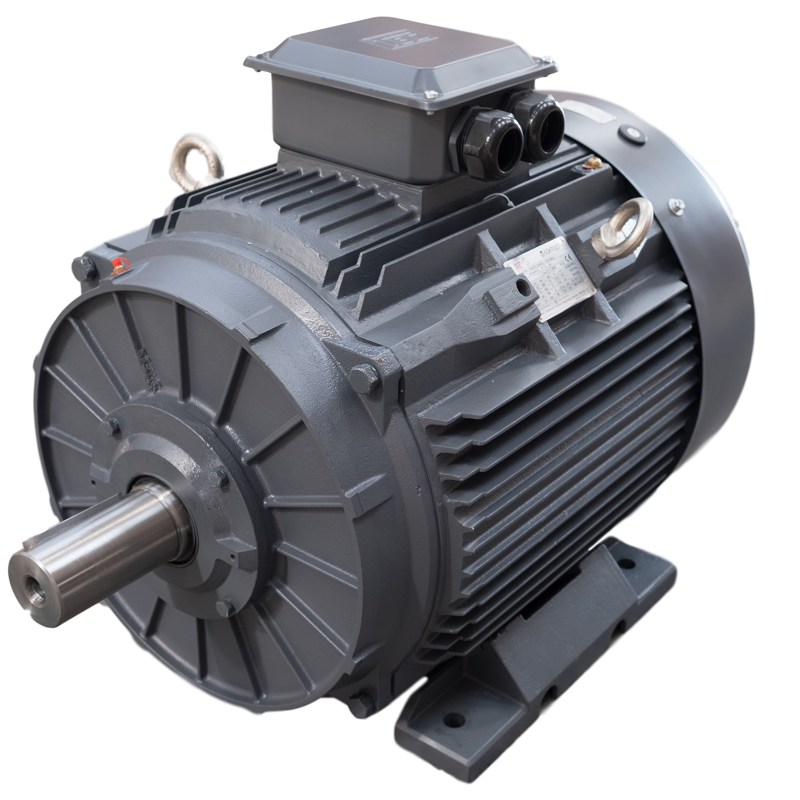

B3 Foot Mount   B3 Foot Mount

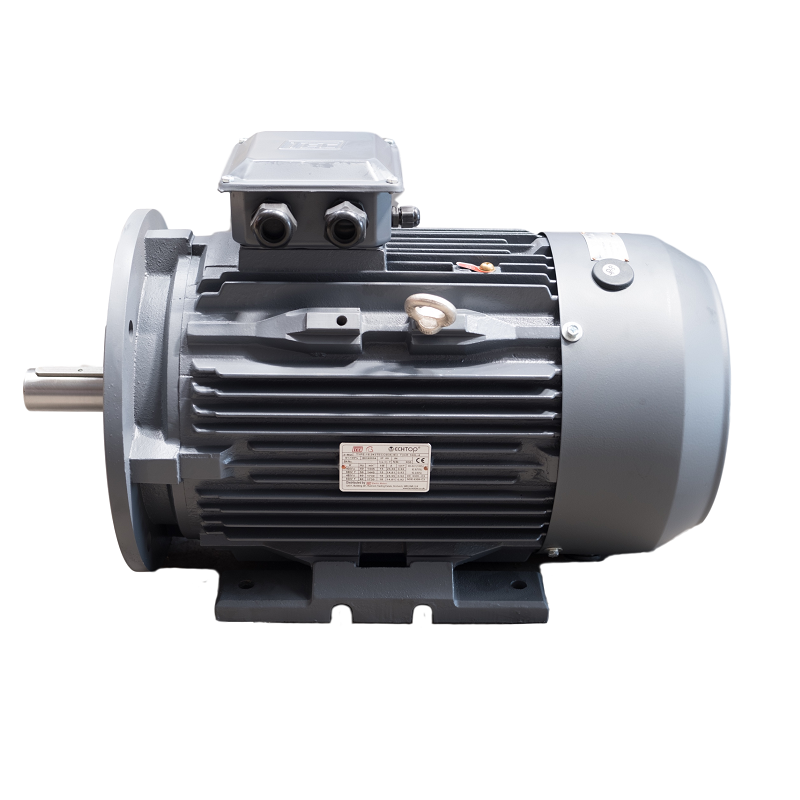

B35 Foot and Flange Mount   B35 Foot and Flange mount

Additional information

Construction

Cast Iron

Frame Size

315M

Mounting

B3, B35, B5

Output Speed

1500 rpm

Power
