TEC IE3 280KW 400V 2 POLE CAST IRON AC MOTOR

£13,801.95 Plus VAT and shipping

Type: AC Motor
Manufacturer: TEC
Output: 280kW
Mounting: B3 (other mounting options available, see selection list).
Frequency: 50 -60hz
Construction: Cast Iron
Frame Size: 355
Phase: 3 Phase
Insulation Class: F
Efficiency: IE3

Select your Mounting Option:

Description

A TEC 280kw, 2 pole, cast iron AC motor, IP55 with multimount frame offering a wide variety of mounting options, PTC thermistors fitted as standard.
TEC IE3 High Efficiency 280kW 3 phase 2 Pole AC Induction Motor, with a choice of mounts, for use with a 400V 3 phase supply. Inverter Rated for use with either a Variable Frequency Inverter Drive (VFD) or with a fixed frequency mains supply at 50Hz. IP55, IE3 Efficiency with PTC thermistors fitted. Cast Iron multi mount construction in IEC frame

IP55 as standard, a totally enclosed motor, fan cooled, protected against penetration from dust and water ingress coming from any direction. IC 411 cooling & PTC thermistors.

This lightweight yet rugged ECOL 280kW "TC" motor is the latest in high efficiency cast iron design from the factory. These motors are suitable for many applications including pumps, fans, compressors, mining, agricultural, maritime, hydraulic and many more.

  Power   280kW   Type   3 phase Cast iron IE3   Poles   2
  Rotation Speed   2960 | 3552   Frame Size   355   Model   T3C 355L1-2
  Frame Construction   Cast Iron   Rated Current   502.22 | 289.95   Net Weight   1715 kg
  Input Voltage  400 | 690   Duty   S1   Protection   IP55

Datasheets

  B3 mount   280.023teccb3-ie3
  B35 mount   280.023teccb35-ie3

Drawings

  B3 mount    tc355ml2b3
  B35 mount   tc355ml2b35

Mounting options

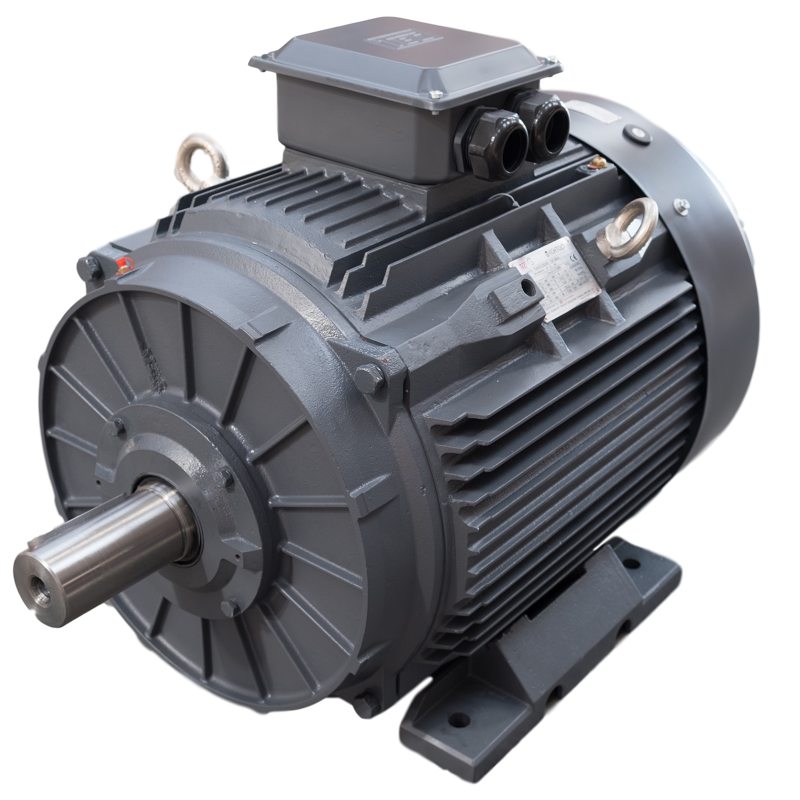

B3 Foot Mount   B3 Foot Mount

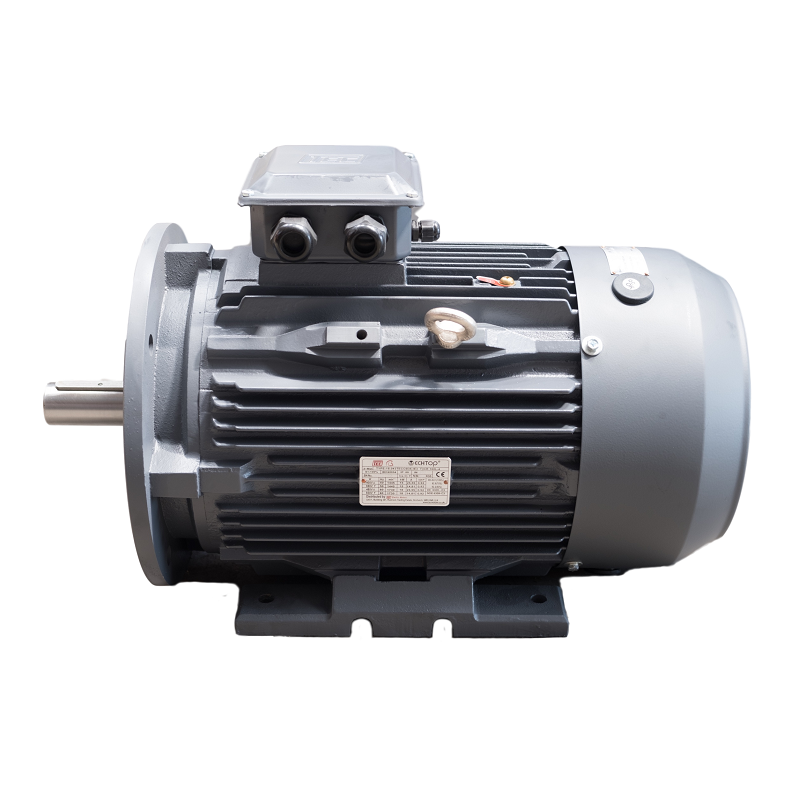

B35 Foot and Flange Mount   B35 Foot and Flange mount

Additional information

Construction

Cast Iron

Frame Size

355L

Mounting

B3, B35, B5

Output Speed

3000 rpm

Power
