TEC IE3 3.0KW 400V 2 POLE ALUMINIUM AC MOTOR
£154.96 Plus VAT and shipping
Type: AC Motor
Mounting: B3 (other mounting options available, see selection list below).
Frequency: 50 -60hz
Frame Size: 100L1-2
Phase: 3 Phase
Insulation Class: F

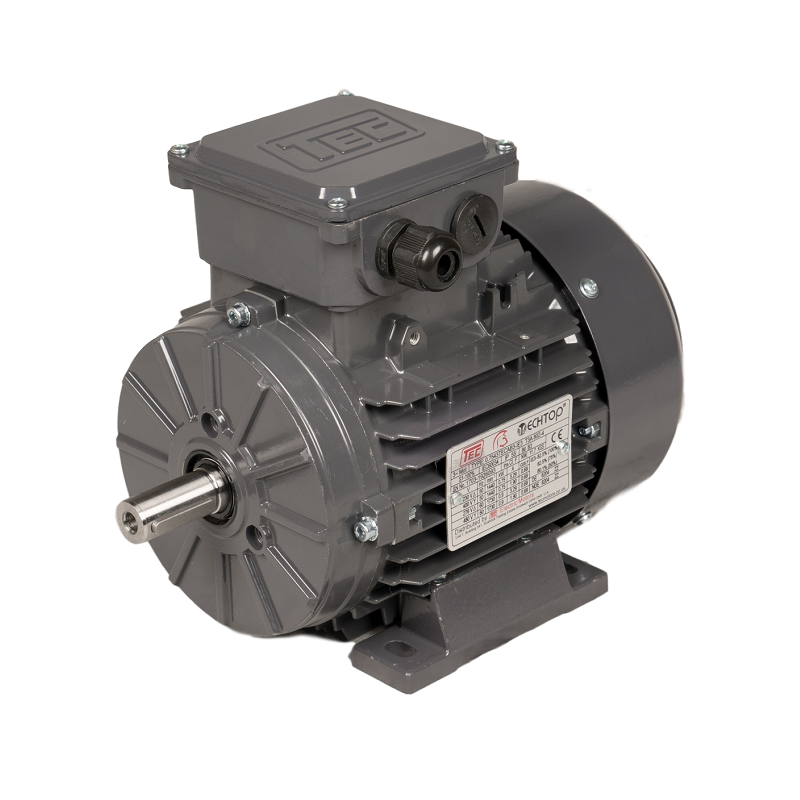

A TEC 3.0kW, 2 pole, Aluminium AC motor, IP55 with multimount frame offering a wide variety of mounting options, PTC thermistors fitted as standard.
TEC IE3 High Efficiency 3.0kW 3 phase 2 Pole AC Induction Motor, with a choice of mounts, for use with a 400V 3 phase supply. Inverter Rated for use with either a Variable Frequency Inverter Drive (VFD) or with a fixed frequency mains supply at 50Hz. IP55, IE3 Efficiency with PTC thermistors fitted. Aluminium multi mount construction in IEC frame
IP55 as standard, a totally enclosed motor, fan cooled, protected against penetration from dust and water ingress coming from any direction. IC 411 cooling & PTC thermistors fitted as standard.
This lightweight yet rugged ECOL 3.0 kW “TA” motor is the latest in high efficiency aluminium design from the factory. These motors are suitable for many applications including pumps, fans, compressors, mining, agricultural, maritime, hydraulic and many more.
|Power||3.0 kW||Type||3 phase Aluminium IE3||Poles||2|
|Rotation Speed||2910 | 3492||Frame Size||100L1-2||Model||T3A 100L1-2|
|Frame Construction||Aluminium||Rated Current||9.68 | 5.59||Net Weight||23.7 kg|
|Input Voltage||230 | 400||Duty||S1||Protection||IP55|
|B3 Foot Mount|
|B35 Foot and Flange mount|
|B14 Face mount|
|B34 Foot and Face mount|
|B5 Flange mount|
