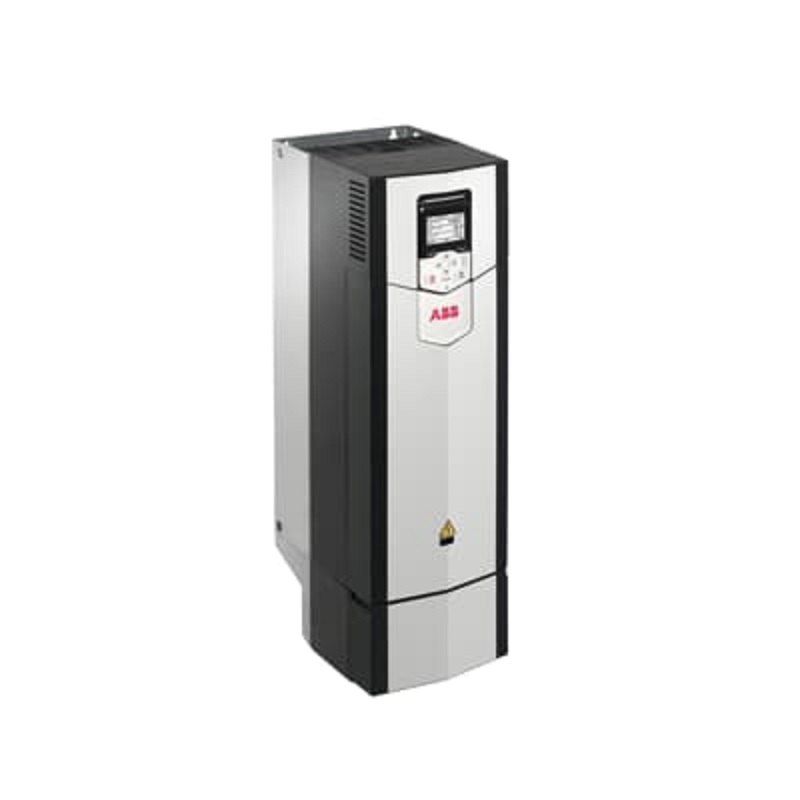

ABB ACS880-01-430A-3 200kW AC Drive

ABB 200kW ACS880-01-430A-3 Industrial AC Drive

£25,595.00 Plus VAT & shipping

ABB Wall mounted ACS880 Industrial AC Drive, built on ABB’s common drive architecture

SKU: ACS880-01-430A-3 Category: Tags: , , , , , , , , ,

Description

ACS880 Industrial AC drives

All-compatible ACS880 single drives

Simplicity and compatibility for all your industrial drive needs

With the ACS880 single drives you simplify your world and open all possibilities. You have complete flexibility and capability in wall-mounted or cabinet-built drives. All can be customized to your precise needs in industries such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills and marine. Built on ABB’s common drive platform for precision control in a wide range of applications such as cranes, extruders, winches, winders, conveyors, mixers, compressors, pumps and fans.

Highlights

  • Intuitive control panel and PC tool
  • Direct torque control (DTC) for precise open and closed loop control
  • Built-in safety features for simplified configuration
  • Communication with all major automation networks
  • Removable memory unit for easy drive commissioning and replacement
  • Energy optimizer and energy efficiency information for monitoring and saving energy
  • Designed for easy service

Supply:  400VAC

Part #: ACS880-01-430A-3

Rated Power (kW) Pld: 200

Rated Current (A) Ild: 400









ACS880-01-430A-3
Product Net Weight: 95.0 kg 209.439 lb
Product Net Depth / Length: 413 mm 16.260 in
Product Net Height: 955 mm
Product Net Width: 380 mm 14.961 in
Package Level 1 Depth / Length: 1145 mm 45.08 in
Package Level 1 Height: 654 mm 25.75 in
Package Level 1 Width: 485 mm 19.09 in
Package Level 1 Units: 1 case

ACS880-01-430A-3

Number of Phases: 3
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 4000 m
Operating Humidity (RHamb): 5 … 95
Sound dB (A): 70 dB(A)
Multiple Battery Information: Lithium Coin, CR2032, 220 mAh, 3 V, 2 pcs, 6 g
Frequency (f): 47.5 … 63 Hz
Frame Size: R9
Input Voltage (Uin): 380 … 415 V
Mounting Type: Wall-mounted

Communication Protocol:
CAN
DeviceNet
EtherNet/IP
MODBUS
Other Bus Systems
PROFIsafe
PROFIBUS
PROFINET IO

Number of Hardware Interfaces:
Industrial Ethernet 0
Other 4
Parallel 0
PROFINET 0
RS-232 0
RS-422 0
RS-485 1
Serial TTY 0
USB 1

Includes:
Control unit
PC connection

Analog Inputs: 2
Analog Outputs: 2
Number of Digital In/Outputs: 6 / 2
Output Current, Heavy-Duty Use (IHD): 363 A
Output Current, Light-Overload Use (ILD): 400 A
Output Current, Normal Use (In): 430 A
Output Power, Heavy-Duty Use (PHD): 200 kW
Output Power, Light-Overload Use (PLD): 200 kW
Output Power, Normal Use (Pn): 250 kW
Apparent Power Output: 298 kV·A
Efficiency Level: IE2
Standby Loss: 83 W

Drives and Automation are an authorised ABB Value Provider for Drives, Motors and Softstarters. ABB Value Providers deliver the authorized offering of sales, support, service and engineering in close cooperation with ABB. We bring ABB’s products and services straight to the customer’s front door.  We use the products that we sell, giving us a true working knowledge of their application. Not only can we sell you the Drive you require, we can also service and repair it if required.

Drives and Automation offer a commissioning service for most UK locations on this item.  Call us today to inquire about one of our experienced engineers commissioning this drive and reducing your downtime.
